Diamond Wire Rope Saw (Stone & Concrete)

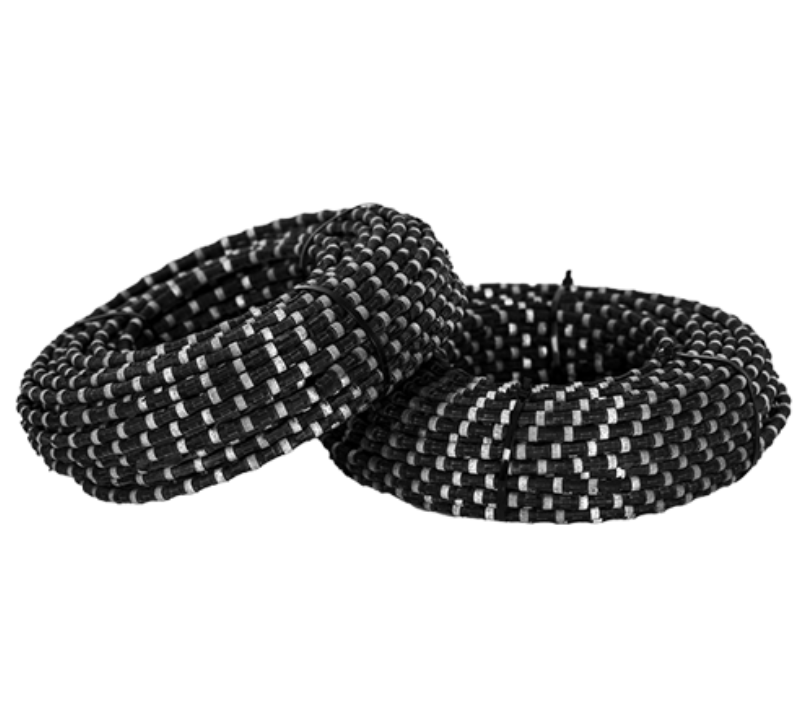

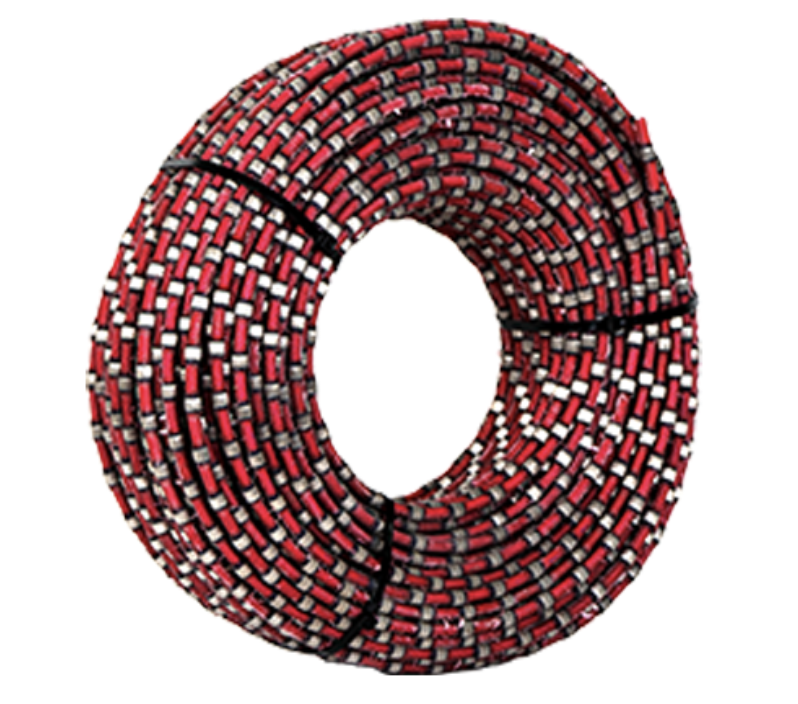

Granite Quarrying & Squaring Diamond Wire Saw

Specially designed for the quarrying of all types of granite (soft, medium and hard), as well as for the shaping of blocks and the machining of irregular and curved surfaces. Featuring a wear-resistant matrix and an optimised diamond concentration, these blades ensure high cutting speeds whilst extending service life; they are widely used in granite quarries both domestically and overseas. Available in standard and heavy-duty versions.

Request a Quote

Overview

Product overview

1. Bead outer diameter specifications: 12.5 mm, 11.8 mm, 11.5 mm, 11.0 mm, 10.5 mm, 8.8 mm, 8.3 mm, etc. 2. Number of beads per metre: 40, 38, 37, etc. (adjusted according to application). 3. Fixing methods: rubber (R), spring (S), injection-moulded (P) and combinations thereof. 4. Classification by cutting material: soft granite (12.5 mm, 40), medium-hardness granite (11.8 mm, 40), hard granite (11.5 mm, 40/38). 5. Bead-forming process: Laser welding, with a gradient design in the matrix hardness to suit high-wear operating conditions. 6. Steel cable core: High-strength galvanised steel cable with excellent fatigue resistance. 7. Applications: Quarrying of granite blocks, block splitting, processing of curved slabs, and carving of irregular curved surfaces.

Features

Key features and parameters

Technical specifications
Specification	Value
Graded formulation	Specialised diamond grit sizes and matrix hardness are matched to the hardness of granite, balancing sharpness and wear resistance to address the challenges of cutting hard stone.
Heavy-duty capacity	Featuring a thick matrix and coarse-grained design, it withstands high-intensity continuous cutting and offers outstanding service life.
Laser-welded beads	High bonding strength ensures minimal grit loss during high-speed cutting and excellent impact resistance.
Narrow kerf and high precision	The narrow kerf minimises stone wastage, and the cut surface requires no secondary grinding.
Stable breakage rate	An aerospace-grade steel cable core is suitable for long-stroke mining equipment, reducing downtime caused by cable replacement.

Same Line

More from Diamond Wire Rope Saw (Stone & Concrete)

View the full line

Marble Quarrying & Squaring Diamond Wire Saw

High-performance diamond wire saws specifically designed for marble quarrying, block shaping and the machining of irregular curved surfaces such as arched slabs. Featuring a soft matrix and a high-cutting-efficiency diamond formulation, they deliver smooth, clean cuts without chipping, making them ideal for soft stones such as white marble, beige marble and limestone. Backed by automated production lines and a specialist formulation laboratory, we provide specialised products tailored to working conditions involving varying degrees of hardness.

Specialised formulation: Supported by an in-house materials laboratory, a high-cutting-performance matrix has been developed specifically for the soft characteristics of marble, ensuring fast cutting speeds and minimising chipping.
High-strength welding: Laser-welded beads prevent grit loss and delamination, extending service life by over 20 per cent compared to standard products.
Narrow kerf design: Precise outer diameter tolerances result in a narrow kerf, improving block yield and ensuring a flat, smooth cut surface.
Corrosion-resistant steel cable: Specialised galvanised steel cable resists corrosion from mine water, ensuring a low breakage rate during prolonged continuous operation.

View Details

Marble Slab Cutting Multi-Wire Saw (Fine Beads)

Specially designed for high-efficiency cutting of large marble slabs using combination wire saws and multi-wire stone cutting machines. Utilising fine-diameter beads (4.3–8.3 mm), it produces narrow kerfs, high yield rates and a flat, smooth surface, making it suitable for high-volume slab processing.

Bead sizes: 10.5mm, 11.5mm (customizable per customer machine)
Beads per meter: 37-40
Fixing method: Rubber (R) / Spring (S) / Injection-Molded / Plastic (P) optional
Applicable materials: basalt, diabase, black galaxy, etc.

View Details

Reinforced Concrete Demolition Diamond Wire Saw

A high-impact-resistant diamond wire saw specifically designed for the demolition of reinforced concrete structures—such as bridges, pile foundations, walls and quays—as well as steel components. Featuring a specialised bead formulation that balances cutting speed with resistance to impact from reinforcing bars, it is also suitable for cutting steel objects such as underwater steel pipes, steel cables and sunken vessels, meeting the requirements of both building demolition and emergency rescue operations.

Impact-resistant formulation: The carcass is optimised for applications involving high concentrations of reinforcing bars to prevent bead rupture.
High breaking strength: Utilises thick-gauge steel cables to withstand high-tension cutting.
Corrosion resistance: Coated for protection, suitable for underwater and damp environments.
High cutting efficiency: Special diamond arrangement enables rapid cutting through concrete and reinforcing bars.

View Details

Fully Plated Diamond Wire (Carbon Steel Core)

Made from a high-carbon steel substrate and fully coated with diamond abrasive grains, these wires are specifically designed for cutting large marble slabs using combination wire saws and multi-wire cutting machines. With a fine wire diameter and high breaking strength, they offer high cutting efficiency and excellent surface finish, making them a premium consumable for slab processing.

Fine wire diameter: Extremely narrow cutting kerf, significantly improving material yield.
High tensile strength: The carbon steel matrix offers high strength and a low wire breakage rate.
Full-plating process: The diamonds are securely bonded, ensuring a long service life.
Compatible with multi-wire cutting machines: Good flexibility, suitable for high-speed operation.

View Details
