Diamond Wire Saw (Precision Cutting)

Medium-Coarse to Coarse Carbon Steel Diamond Wire (77-580μm)

Medium-coarse to coarse-diameter diamond wires specifically designed for cutting medium-to-thick, hard and brittle materials such as sapphire, ceramics, quartz, magnetic materials and stone. Featuring a high-carbon cold-drawn steel wire core and a three-layer composite plating process, these wires offer a wide range of diameters (77–580 μm) and high breaking strength, making them suitable for high-feed, high-load cutting conditions whilst balancing cutting efficiency with surface quality. Coarse wire specifications of 245 μm and above can be customised to meet diverse machining requirements.

Request a Quote

Overview

Product overview

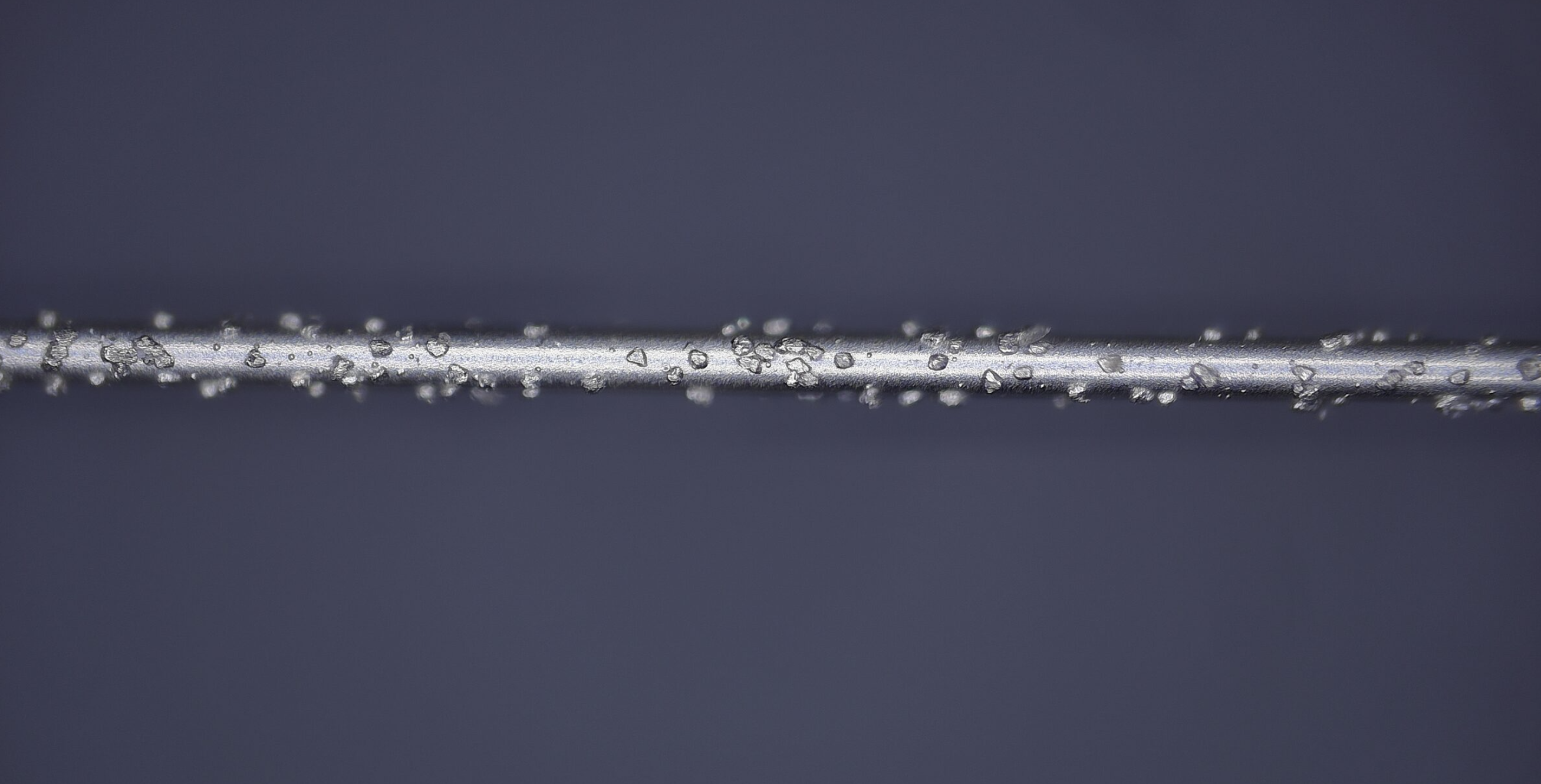

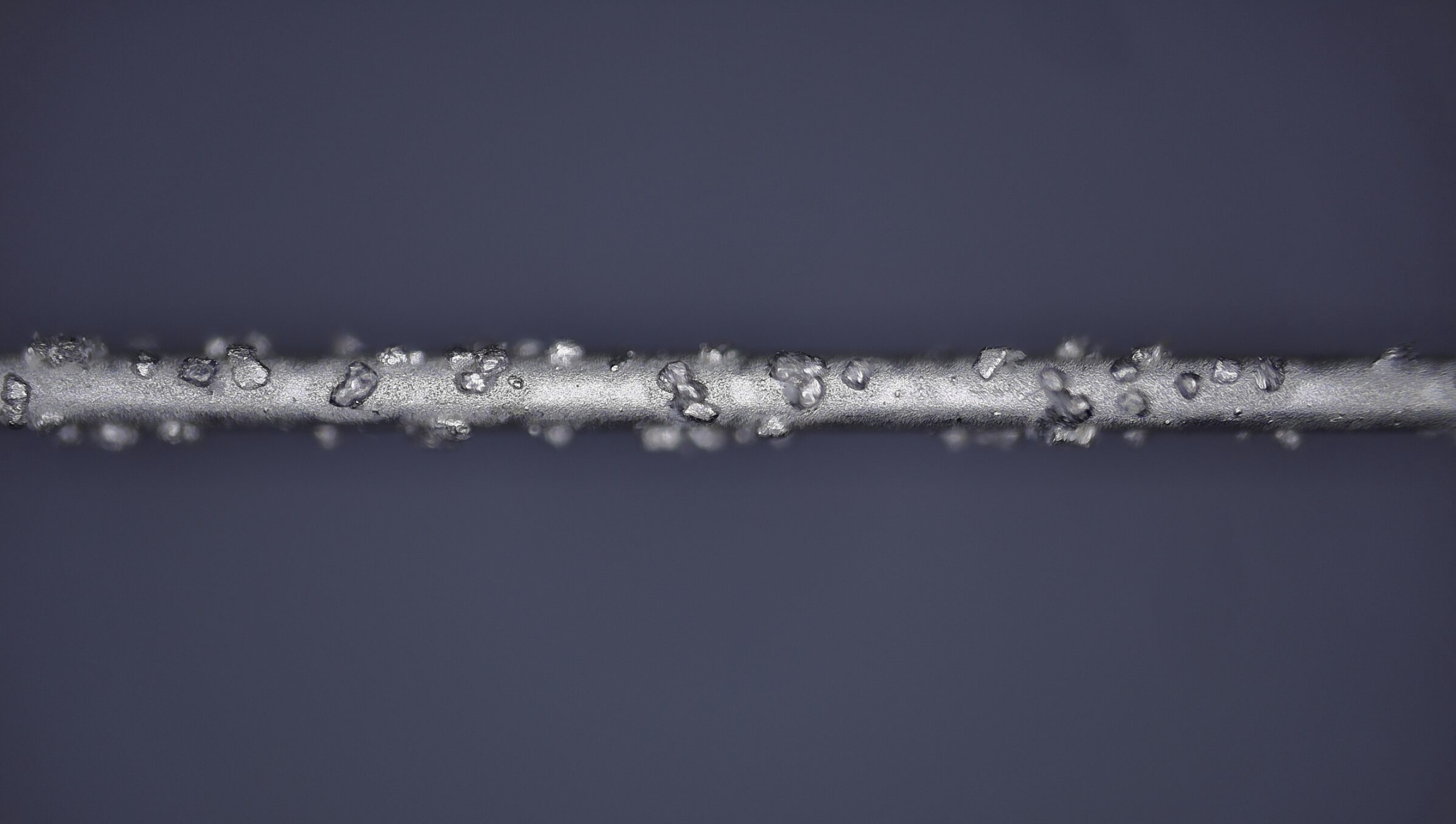

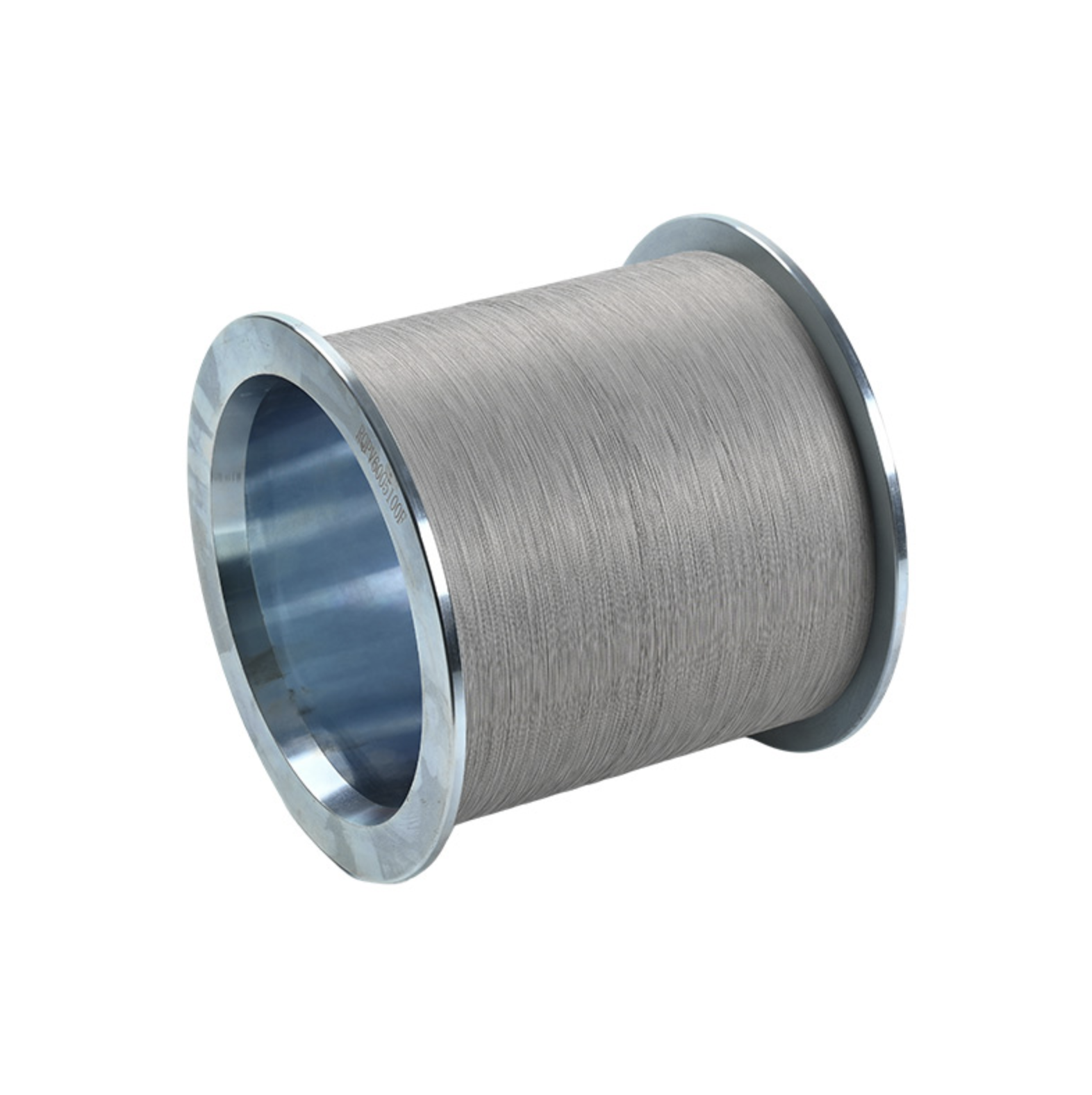

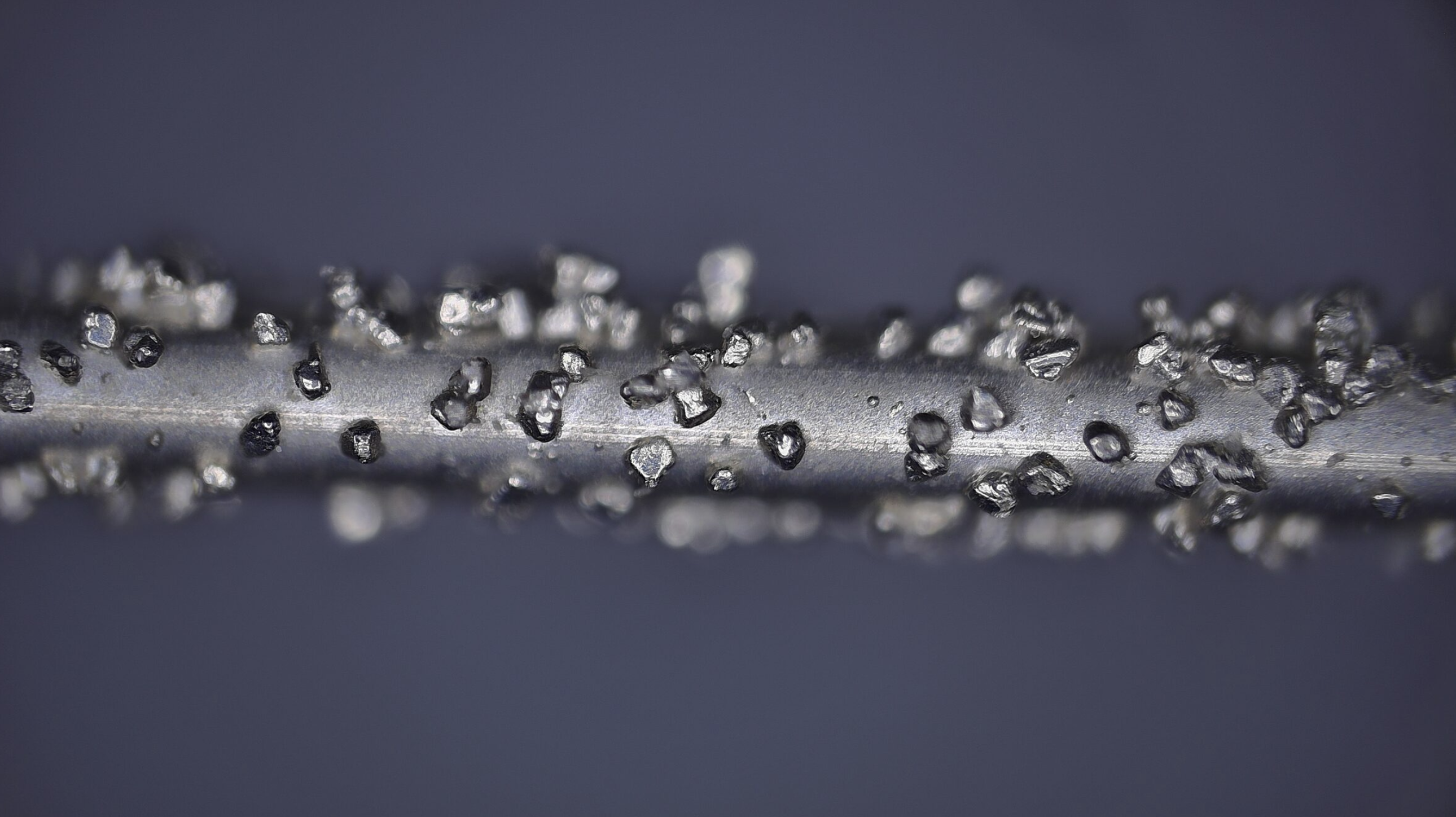

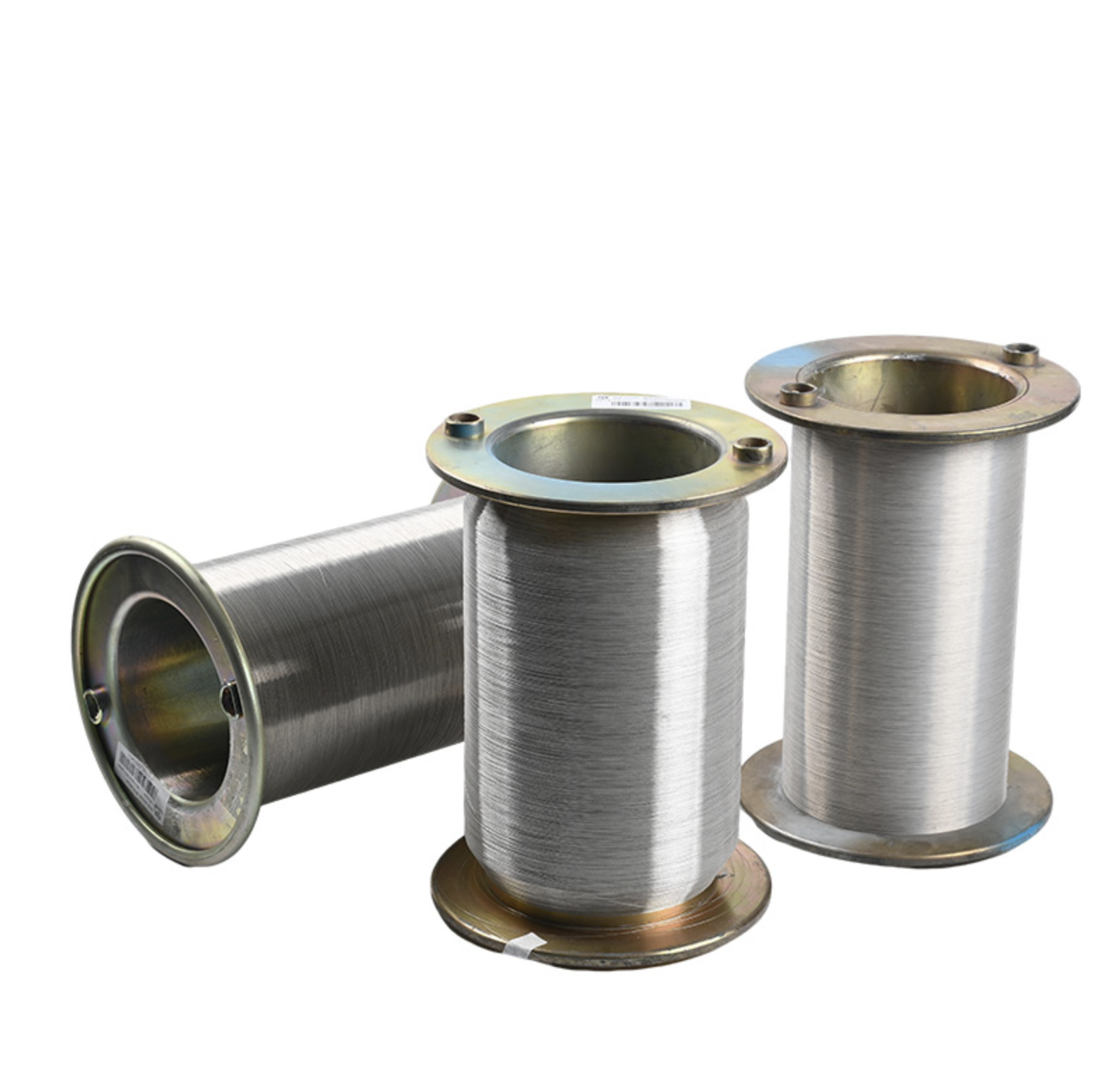

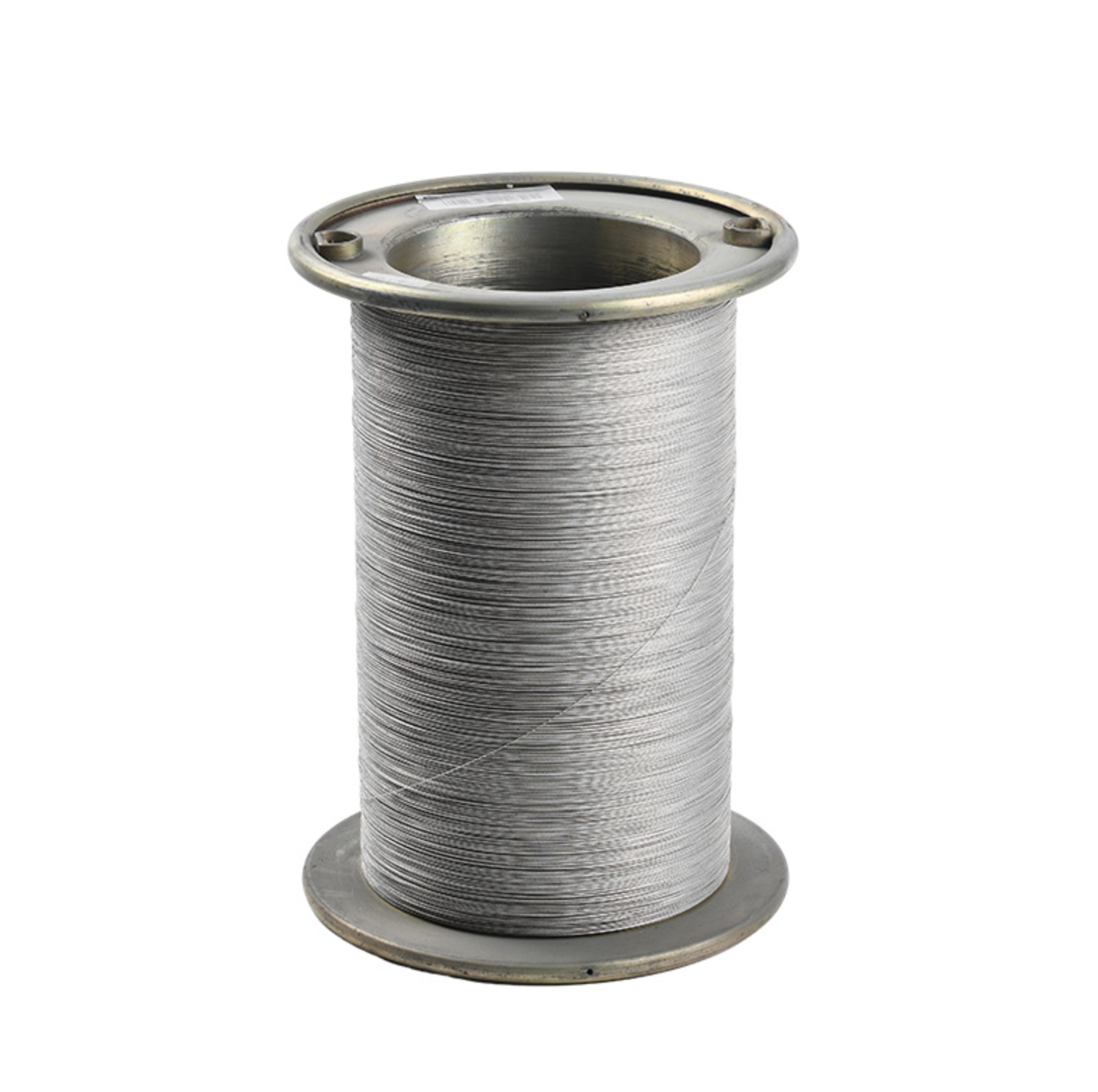

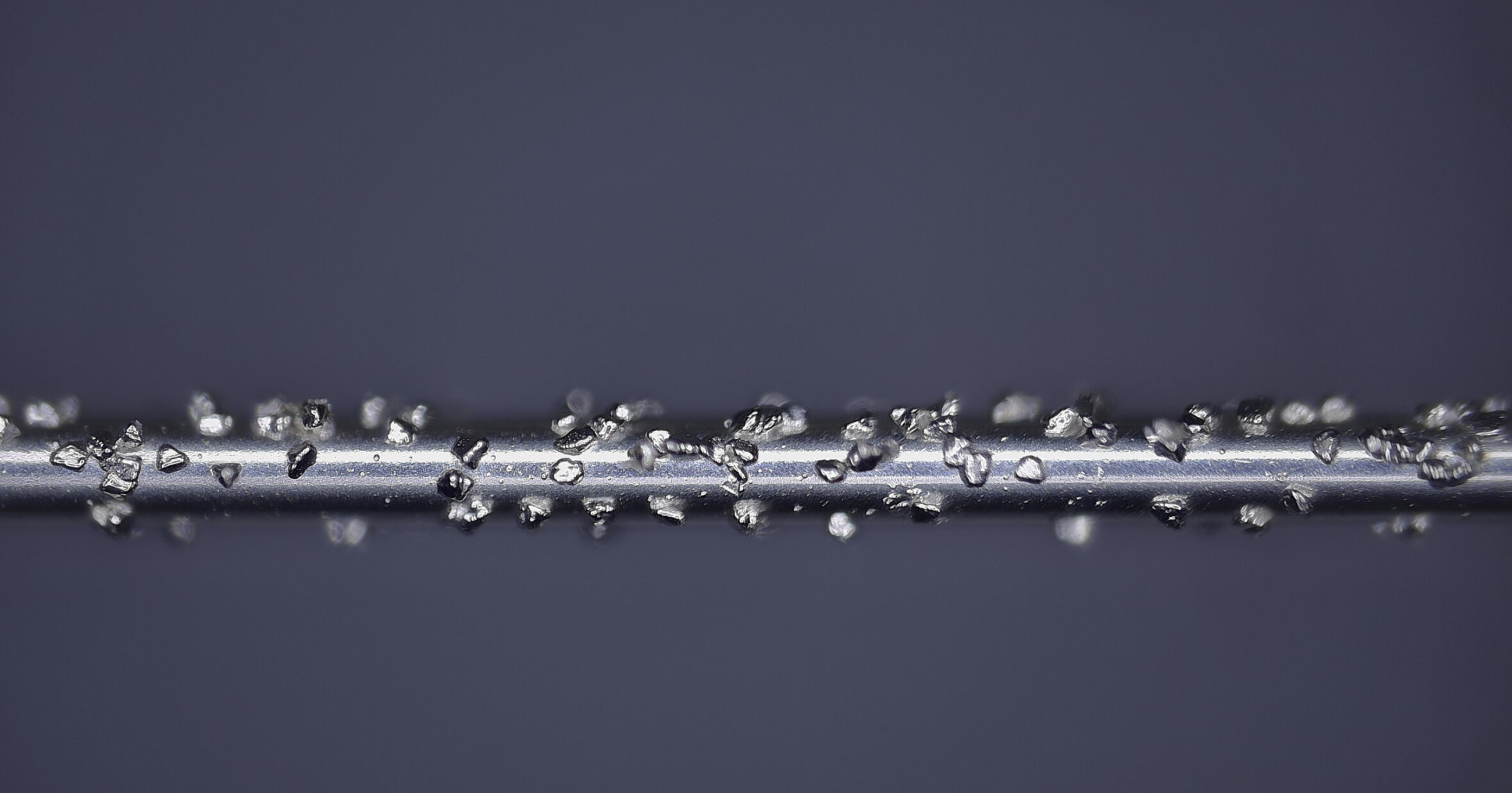

1. Base material: high-carbon steel (C ≥ 0.8 per cent); busbar diameters range from approximately 60 μm to 500 μm, with finished outer diameters ranging from 77 to 580 μm. 2. Coating structure: Pre-plated nickel undercoat (2.0–3.0 μm) + diamond grit + thickened nickel-cobalt alloy layer (0.5–8 μm); total coating thickness 3.0–20.0 μm (increasing with wire diameter). 3. Diamond concentration: 60–160 grains/mm (customisable). 4. Standard stock specifications: 78 μm, 90 μm, 102 μm, 125 μm, 148 μm, 170 μm, 195 μm, 220 μm, 245 μm. 5. Extended custom specifications: 245 μm and above up to 580 μm (including 300 μm, 350 μm, 400 μm, 580 μm, etc.); process parameters are the same as the standard series, with wire diameter, concentration and length customisable as required. 6. Typical applications: sapphire substrates, optical glass, ceramic substrates, quartz crucibles, permanent magnet materials, engineered stone, etc. 7. Customisable items: wire diameter, diamond concentration (60–160 grains per mm), coating thickness, spool length (60/120/240 km) and packaging

Features

Key features and parameters

Technical specifications
Specification	Value
1. High breaking strength	The thicker the wire diameter, the higher the breaking strength (φ78 μm ≥ 10 N → φ245 μm ≥ 50 N; for custom specifications of thicker wires, the breaking strength increases proportionally), ensuring the wire does not break during high-feed cutting.
2. Robust coating	Bond strength ≥ 30 MPa, coating hardness 450–580 HV, excellent wear resistance, suitable for continuous cutting under high loads.
3. Wide tolerance control	Wire diameter tolerance ranges from ±1.5–3.0 μm (77–200 μm) to ±3.0–5.0 μm (200–580 μm), with ovality ≤ 1.8 μm.
4. High versatility	Suitable for a wide range of hard and brittle materials; concentration and length can be flexibly adjusted.
5. Consistent cutting quality	controllable chipping; smooth cross-section.
6. Comprehensive product range	Covers the full spectrum from fine and medium-coarse to heavy-duty coarse wires, meeting the cutting requirements for materials of varying thicknesses and hardnesses.
