Ultra-Fine Tungsten Core Diamond Wire (24-32μm)

A high-end diamond wire specifically designed for cutting 8–12-inch semiconductor wafers, SiC, GaN and ultra-thin wafers of ≤75 μm. Featuring a tungsten or tungsten-lanthanum alloy core combined with a three-layer composite plating process, it offers extremely high tensile strength, an extremely low breakage rate and excellent cutting precision, meeting the requirements for semiconductor-grade high cleanliness and ultra-low damage.

Request a Quote

Overview

Product overview

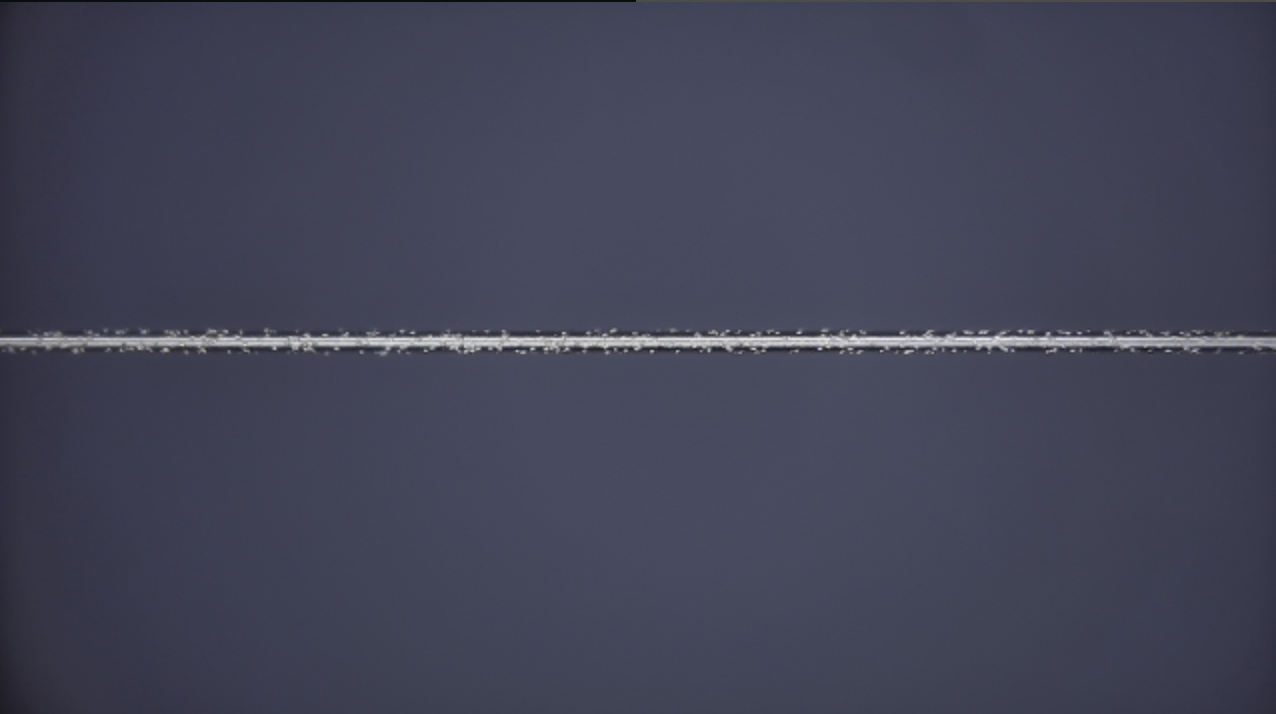

1. Busbar material: pure tungsten wire or tungsten-lanthanum alloy; busbar diameter 24–32 μm; finished outer diameter 39–47 μm (tolerance ±2 μm). 2. Diamond particle size: D50 3–8 μm (commonly 5 μm), cutting edge height 1.0–4.0 μm. 3. Coating structure: pre-plated nickel base layer + diamond grit layer + thickened nickel-cobalt alloy coating; total coating thickness approximately 2.0 ± 0.3 μm. 4. Typical applications: semiconductor wafers (8-inch/12-inch), silicon carbide (SiC), gallium nitride (GaN) and thinned N-type photovoltaic silicon wafers. 5.Customisable specifications: wire diameter, diamond concentration (80–140 grains per mm), coating thickness, spool length (120 km or 240 km) and packaging.

Features

Key features and parameters

Technical specifications
Specification	Value
Ultra-high strength	Tensile strength ≥ 3000–3200 MPa (tungsten alloys can reach ≥ 6000 MPa), ensuring no deformation during high-speed cutting.
Extremely low damage	Front-side chipping ≤ 2–3 μm, rear-side chipping ≤ 3–5 μm, damage layer ≤ 7–10 μm (depending on the material).
Precision tolerances	Wire diameter tolerance ±2.0 μm, ovality ≤ 1.0 μm
Long service life	Service life for semiconductor cutting ≥ 240 km per roll, with a yield rate 0.68%–2.35% higher than that of mainstream products.
High purity	The tungsten wire is corrosion-resistant and compatible with semiconductor cleaning processes.
Operating speed	Recommended cutting speed 12–20 m/s (semiconductors), with a maximum of 40 m/s (photovoltaics).

Same Line

More from Diamond Wire Saw (Precision Cutting)

View the full line

Closed-Loop Carbon Steel Diamond Wire (0.33-0.78mm)

A closed-loop diamond wire specifically designed for cutting large or irregularly shaped materials such as stone blocks, honeycomb materials and building components. Featuring a high-strength carbon steel core reinforced by specialised welding and plating, it offers exceptional breaking strength and a long service life, making it suitable for heavy-duty applications such as quarrying and stone processing.

Extremely high load capacity: High breaking strength, suitable for cutting under high tension and with high feed rates.
Closed-loop design: No wear at the joints, smooth operation, and reduced risk of wire breakage.
High durability: Reinforced with a coating for a long service life, suitable for continuous operation.
Flexible customisation: Circumference can be customised to meet customer requirements, making it compatible with cutting equipment of various sizes.

View Details

Fine Carbon Steel Diamond Wire (34-60μm)

A cost-effective diamond wire suitable for cutting photovoltaic silicon wafers (210 mm/182 mm), semiconductor wafers and general hard, brittle materials. Featuring a high-carbon cold-drawn steel core and a three-layer composite coating, it is produced using a well-established process and is available with consistent supply. Offering a cost advantage whilst ensuring cutting quality, it is the mainstay product for routine slicing.

Excellent mechanical properties: tensile strength ≥ 3,000–4,500 MPa (higher for finer wires), breaking force ≥ 10 N (φ78 μm).
Precision tolerances: wire diameter tolerance ±0.6–1.0 μm, ovality ≤ 1.2 μm.
Low damage: Front-side chipping ≤ 3–5 μm, rear-side chipping ≤ 5–8 μm, damage layer ≤ 8–12 μm (for semiconductor applications).
Wide compatibility: Compatible with mainstream cutting equipment

View Details

Medium-Coarse to Coarse Carbon Steel Diamond Wire (77-580μm)

Medium-coarse to coarse-diameter diamond wires specifically designed for cutting medium-to-thick, hard and brittle materials such as sapphire, ceramics, quartz, magnetic materials and stone. Featuring a high-carbon cold-drawn steel wire core and a three-layer composite plating process, these wires offer a wide range of diameters (77–580 μm) and high breaking strength, making them suitable for high-feed, high-load cutting conditions whilst balancing cutting efficiency with surface quality. Coarse wire specifications of 245 μm and above can be customised to meet diverse machining requirements.

1. High breaking strength: The thicker the wire diameter, the higher the breaking strength (φ78 μm ≥ 10 N → φ245 μm ≥ 50 N; for custom specifications of thicker wires, the breaking strength increases proportionally), ensuring the wire does not break during high-feed cutting.
2. Robust coating: Bond strength ≥ 30 MPa, coating hardness 450–580 HV, excellent wear resistance, suitable for continuous cutting under high loads.
3. Wide tolerance control: Wire diameter tolerance ranges from ±1.5–3.0 μm (77–200 μm) to ±3.0–5.0 μm (200–580 μm), with ovality ≤ 1.8 μm.
4. High versatility: Suitable for a wide range of hard and brittle materials; concentration and length can be flexibly adjusted.

View Details
